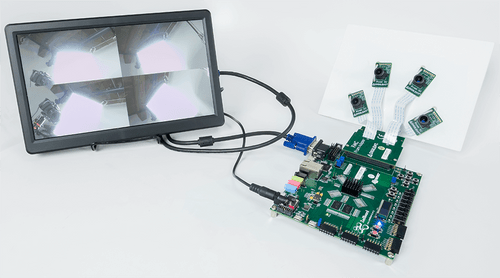

The ZedBoard Advanced Image Processing Kit was designed to use the video processing capabilities of the Zynq-7000 APSoC's tightly coupled ARM processing system and 7-series programmable logic. Included in the bundle is aZedBoard, anFMC Pcam Adapter, and up to fourPcamsto create the ultimate video streaming setup. This bundle has everything you'll need for setup, including the ribbon cables for connection to the Pcams and Pcam Adapter.
Guides and demos are available to help you get started quickly with kit. These can be found through theSupport Materialstab.
Each product's specific features can be found on their respective product pages:
- Product Compliance:
- HTC:8471500150
- ECCN:5A992.c
- ZedBoard Zynq-7000 ARM/FPGA SoC Development Board
- 2 or 4Pcam5Cs(depending on selection)
- 10 cm ribbon cable
- FMC Pcam Adapter
- 12 V AC/DC power supply (US, UK & EU adapters)
- 4 GB SD Card
- USB A to micro-B cable
- USB Adapter: Male Micro-B to Female Standard-A
- Custom Digilent cardboard packaging with protective foam
To create and modify designs for your ZedBoard and Advanced Image Processing Kit, you can use Xilinx's Vivado Design Suite. Vivado is a software designed for the synthesis and analysis of HDL designs.
Quickly find what you need to get started and reduce mean time to blink.
All product support including documentation, projects, and the Digilent Forum can be accessed through the product resource center.
ZedBoard Resource CenterQuick Links
ZedBoard Reference Manual
FMC Pcam Adapter Reference Manual
Pcam5C Reference Manual
