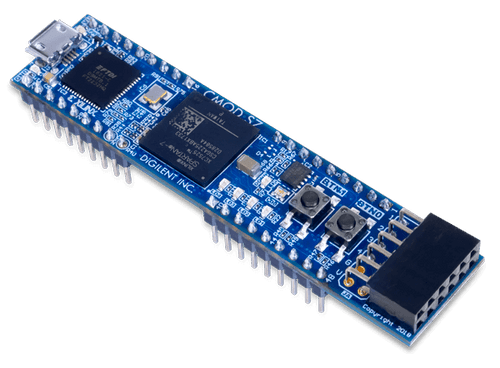

Cmod S7: Breadboardable Spartan-7 FPGA Module

The Cmod, orCarrierMOdule，产品家族旨在将FPGA快速，简单，灵活地集成到电路设计，原型制作和学习/业余爱好项目中。

Digilent CMOD S7是一个小的48针倾角表板，填充了36个针脚，周围建于Xilinx^®Spartan^®-7 FPGA将FPGA功率和原型化为无焊面包板。

The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod S7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 32 FPGA I/O signals, 2 FPGA analog input signals, an external power input rail, and ground that are routed to 100-mil-spaced through-hole pins, making the Cmod S7 compatible with solderless breadboards. This form factor makes the Cmod S7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7" by 3.05", it can also be loaded in a standard socket and used in embedded systems.

The Spartan-7 FPGA on the Cmod S7 fits performance into a small form-factor packaging. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

If your design requires transceiver lines or more FPGA resources, we recommend the higher-performanceCMOD A7，具有Artix-7 FPGA。

指南和演示可以帮助用户快速使用CMOD S7开始。这些可以通过支持Materials标签。

• Xilinx Spartan-7 FPGA（XC7S25-1CSGA225C）
  • 3,650片，包含四个6输入LUT和8个触发器
  • 1,620 Kbits of fast block RAM

  • 三个时钟管理瓷砖，每个瓷砖都有一个锁定环和混合模式时钟管理器
  • 80 DSP切片
  • 内部时钟速度超过450 MHz

  • On-chip analog-to-digital converter (XADC)
  • 可以通过JTAG和Quad-Spi Flash进行编程
• 内存
  • 4 MB Quad-SPI闪光灯
• Power
  • Powered from USB or 5V external supply connected to DIP pin 24 (micro USB cableNOTincluded)
• USB
  • USB-JTAG programming circuitry
  • USB-UART bridge
• Push-buttons and LEDs
  • 2 Buttons
  • 4个LED
  • 1个RGB LED

• 扩展连接器
  • 1个PMOD连接器
    • 8总计FPGA I/O
  • 48-pin DIP form-factor headers
  • 36填充针
  • 32 total FPGA I/O
  • 2个单端0-3.3V模拟输入到XADC

• Product Compliance:
• HTC:8473301180
• ECCN:Ear99

• CMOD S7模块
• 带有防护泡沫的定制Digilent纸板箱

CMOD S7可以使用Digilent的Adept软件进行编程。Digilent Adept是一种独特而强大的解决方案，可让您与Digilent系统板和各种逻辑设备进行通信。了解有关熟练的更多信息这里.

To create and modify designs for your Cmod S7, you can use Xilinx's Vivado Design Suite. Vivado is a software designed for the synthesis and analysis of HDL designs. Both variants of the Cmod S7 are supported by the free WebPACK edition of the Vivado Design Suite.

如果您使用Xilinx的Microblaze软处理器核心，则可以使用Vitis Core开发套件或Xilinx软件开发套件来为您的CMOD S7创建嵌入式应用程序。
